HGP-3AI齿轮泵
- 产品品牌 台湾HYDROMAX新鸿
- 产品型号 HGP-3AI齿轮泵
- 产品描述
HGP-3AI_台湾HYDROMAX齿轮泵...
HGP-3AI_台湾HYDROMAX齿轮泵
ORDER CODES
| Model Name | HGP-3AI |
| Mounting | F Flange Type |
| L Foot Type | |
| Delivery Capacity | 2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| Flange Mounting Type | 2B SAE 2-bolt |
| 4BD DIN 4-bolt | |
| Inlet and Outlet* | F flange type(F1~F6) |
| P PT(P1~P2) | |
| G G,BSP,PF(G1~G2) | |
| U UNF(U1~U2) |
SPECIFICATIONS
Model
Accurate
Pressure
(kgf/cm2)
Speed
(r.p.m)
Weight(kg)
Displacement
Port Size
(PT)
Capacity
(cc/rev)
normal
Max
Rate
Max
Min
Inlet
Outlet
HGP-3AI-F2R
2
240
280
1800
4000
700
3/4"
1/2"
3.69
HGP-3AI-F3R
3
240
280
1800
4000
700
3/4"
1/2"
3.73
HGP-3AI-F4R
4
240
280
1800
4000
700
3/4"
1/2"
3.79
HGP-3AI-F6R
6
240
280
1800
4000
700
3/4"
1/2"
3.87
HGP-3AI-F8R
8.4
240
280
1800
3500
700
3/4"
1/2"
3.95
HGP-3AI-F11R
11
240
280
1800
3000
600
3/4"
1/2"
4.1
HGP-3AI-F13R
13
240
280
1800
3000
600
3/4"
1/2"
4.2
HGP-3AI-F14R
14.3
240
280
1800
3000
500
3/4"
1/2"
4.26
HGP-3AI-F17R
16.5
240
280
1800
3000
500
3/4"
1/2"
4.37
HGP-3AI-F19R
19.2
240
280
1800
3000
500
3/4"
1/2"
4.49
HGP-3A-F23R
23
240
280
1800
3000
500
3/4"
1/2"
4.69
HGP-3AI-F25R
25
205
240
1800
2800
500
1"
3/4"
4.74
HGP-3AI-F28R
28
205
240
1800
2500
500
1"
3/4"
4.85
HGP-3A-F30R
30
205
240
1800
2500
500
1"
3/4"
4.95
HGP-3AI-F33R
33
170
205
1200
2500
500
1"
3/4"
5.1
HGP-3AI-F35R
35
155
170
1200
2500
500
1"
3/4"
5.21

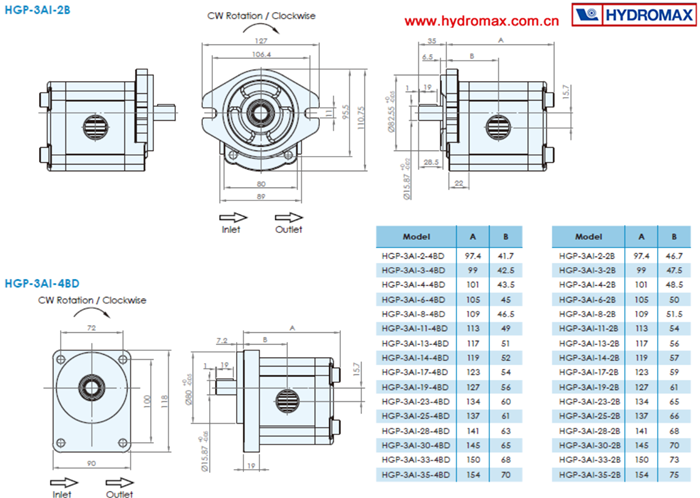

DIMENSIONS(UNIT:mm)
