HGP-1AU齿轮泵
更新：2016-9-30 10:12:47 点击：
- 产品品牌 台湾HYDROMAX新鸿
- 产品型号 HGP-1AU齿轮泵
- 产品描述
HGP-1AU_台湾HYDROMAX齿轮泵...
产品介绍
HGP-1AU_台湾HYDROMAX齿轮泵
ORDER CODES
| Model Name | HGP-1AU |
| Mounting | F Flange Type |
| Delivery Capacity | 0.5,0.8,1,2,26,3,4,5,6,8 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | W tang shaft |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |
| Displacement | |||||||
| Capacity | |||||||
| (cc/rev) | normal | Max | Rate | Max | Min | ||
| HGP-1AU-F05R | 0.5 | 210 | 250 | 1800 | 4500 | 1000 | 0.6 |
| HGP-1AU-F08R | 0.8 | 210 | 250 | 1800 | 4500 | 1000 | 0.65 |
| HGP-1AU-F1R | 1 | 210 | 250 | 1800 | 4500 | 1000 | 0.7 |
| HGP-1AU-F2R | 2 | 210 | 250 | 1800 | 4500 | 600 | 0.75 |
| HGP-1AU-F26R | 2.6 | 210 | 250 | 1800 | 4500 | 600 | 0.85 |
| HGP-1AU-F3R | 3 | 210 | 250 | 1800 | 4500 | 600 | 0.86 |
| HGP-1AU-F4R | 4 | 210 | 250 | 1800 | 4000 | 600 | 0.88 |
| HGP-1AU-F5R | 5 | 210 | 250 | 1800 | 3200 | 600 | 0.9 |
| HGP-1AU-F6R | 6 | 210 | 250 | 1800 | 3200 | 600 | 1 |
| HGP-1AU-F8R | 7.8 | 170 | 210 | 1800 | 3200 | 600 | 1.1 |

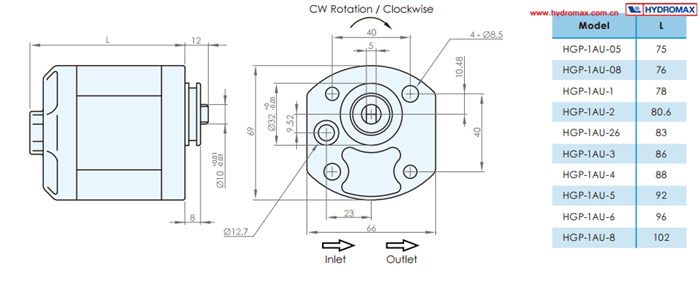

DIMENSIONS(UNIT:mm)

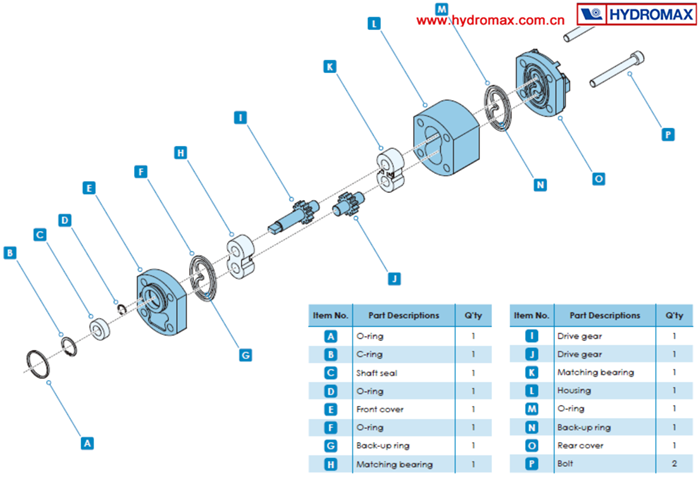

DECOMPOSITION CHARTS
